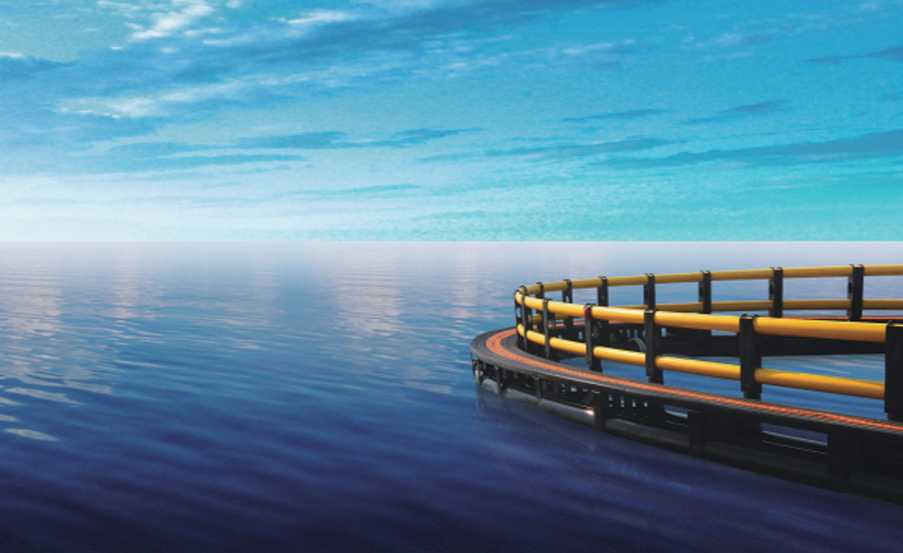

The frame system is composed of high strength HDPE pipes and fittings, and manufacture by special imported polyethylene raw materials, with good strength and toughness. As linking by welding, the frame has capability to against typhoon and surge, meanwhile, the materials of frame are used high-tech treatment technology of anti UV aging, corrosion resistance, over 15-year service life.
Purchase
1
Diameter of main floating pipes (mm): 305
Wall thickness of main floating pipes (mm): ≥18.7
Cage Diameter(m): 19.10/25.46
Breeding Area (㎡):277.4/497.1
Cage Circumfernce (m): 60/80
2
Diameter of main floating pipes (mm): 315
Wall thickness of main floating pipes (mm): ≥18.7
Cage Diameter(m): 19.10/25.46
Breeding Area (㎡):277.4/497.1
Cage Circumfernce (m): 60/80
3
Diameter of main floating pipes (mm): 390
Wall thickness of main floating pipes (mm): ≥23.7
Cage Diameter(m): 25.46/31.83
Breeding Area (㎡):493.8/776.4
Cage Circumfernce (m): 80/100
REMARK:
1. Length:9m,12m or other length are available upon request.
2. The cage circumference and diameter are calculated by the basis of the center line within the floating pipe. The breeding area is calculated by the effective area.
3. In this form, "floating pipe" is short for "HDPE cage floating pipe", "handrail pipe" is short for "HDPE cage handrail pipe".
